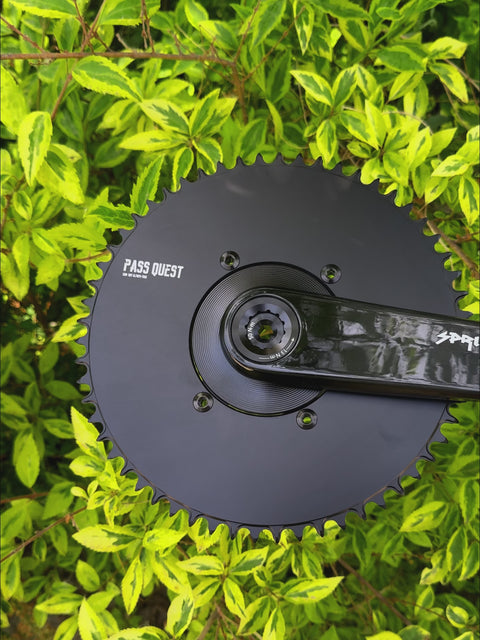

SHIMANO X110BCD (4-bolt AERO) Round Narrow Wide Chainring

Model

36T or 38T or 40T or 42T or 44T or 46T or 48T or 50T or 52T or 54T or 56T or 58T or 60T

Colour

Black or Silver

Made from

7075-T651 Aluminum Alloy

Surface coating

Anodizing

Made with

CNC milling

Chainring shape

Round

Compatible cranksets

 SHIMANO 110 BCD (4-bolt AERO)

 4700 5800 6800 9000

Weight, grams

59(36T), 68 (38T), 77 (40T), 91 (42T), 106 (44T), 116 (46T), 132 (48T), 139 (50T), 152(52T), 158 (54T), 171 (56T), 193 (58T),203 (60T)

Chain compatibility

Support 9/10/11/12 speed Ordinary chain

Bicycle shop or dealer contact customer service

This product can be customized with a devilish smiley face.

         PASS QUEST NARROW WIDE CHAINRING

• The X110BCD positive and negative chainrings are CNC milledfrom an entire aluminum plate, and the back is hollowed outand chamfered to ensure strength while also reducing theweight of the chainrings. The chainring adopts an elongatedtooth shape, which makes it difficult for the chain to escapefrom the teeth even if it jumps violently, thus ensuring that thechain does not fall off.

• Our tooth height achieved 8.5 mm, Increased tooth height improves chain retention
• Manufactured using 7075-T651 highly durable aluminum alloy
• The chamfering design can reduce the weight of the gear plate and make the gear plate more beautiful
• (BCD:THE CENTER HOLE OF THE DISC NAILFORMS THE DIAMETER OF THE CIRCLE)
  FC5800/FC6800
  FOUR CLAWS WITHOUT ARC
• FC-R7000/FC-R8000FC-R9100
  THERE'S AN ARC IN THE
  UPPER RIGHT CORNER
• FC-R7100/FC-R8100FC-R9200
  THERE ARE CIRCULARS ON
  THE TOP RIGHT AND ON THE
  BOTTOM RIGHT
• Narrow wide tooth, it design for 1x speed only, can not use as 2x speed, not support front shifting derailleur.
• When using a 12-speed chain, please replace the original SHIMANO fast sprocket with a KMC 12-speed fast sprocket.
