PASS QUEST 2X 110BCD (5-bolt Hollow) AXS Sprocket Road Bike 12 speed

PASS QUEST 2X CHAINRING

• Important Notes:
•

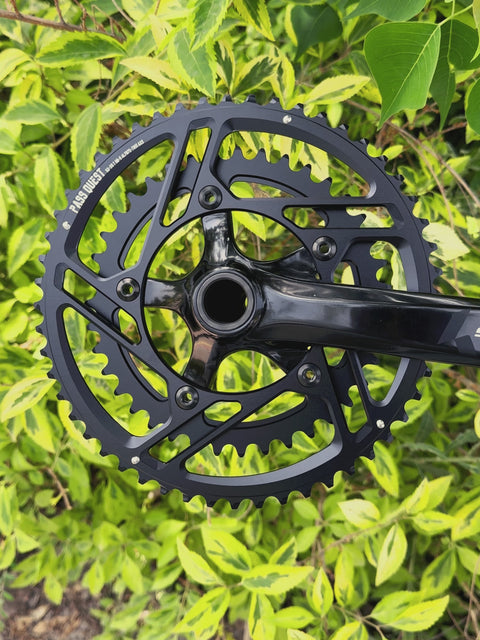

• The 110BCD 5 Bolts variable speed double disc is CNC milled from the whole aluminum plate, and the back is hollowed out and milled and chamfered to ensure the strength and reduce the weight of the chainring! The speed change disc is designed as a whole, and other gears cannot be replaced, and different brands cannot be matched at will.
• It takes time to polish the aluminum plate with a thickness of 5mm. The texture and triangular structure ensure the hardness of the chainring while bringing a lighter experience
• For Sram Red Rival S350 S900 Rotor Force 110 BCD 5 Bolts
• The double chainrings are designed well. Do not mix different brands and different gear numbers. Smooth speed change cannot be guaranteed.
• All PASS QUEST double chainring must be used as pass quest original pair set. Mix with other brand chainring will not work.

• We provide standard screws free of charge.
  Locking torque: 6-8 N·M

  Excessive torque may damage the screw.

• Installation Instructions:
  1. Position the large chainring pin directly beneath the crank arm.
  2. Align the positioning point on the small chainring directly beneath the crank arm.
  3. Align the countersunk holes with the chainring bolts to complete the installation.
•
