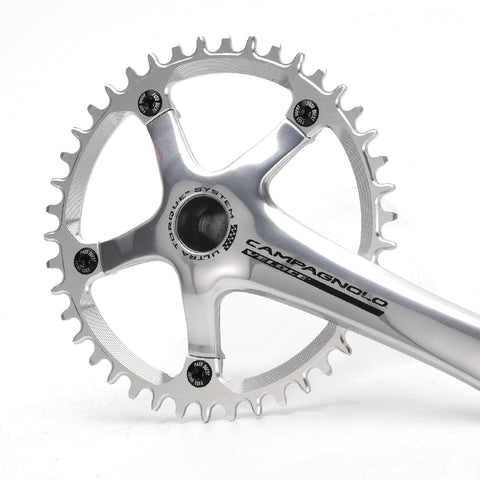

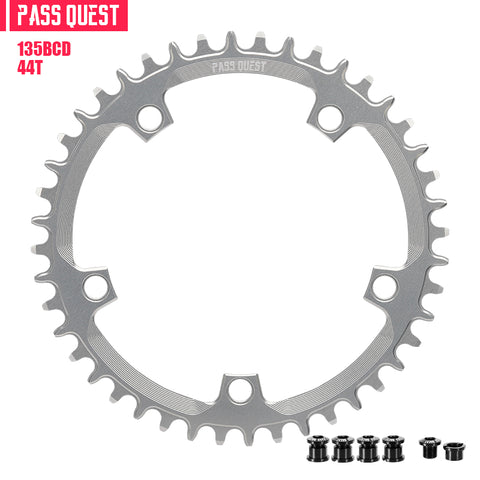

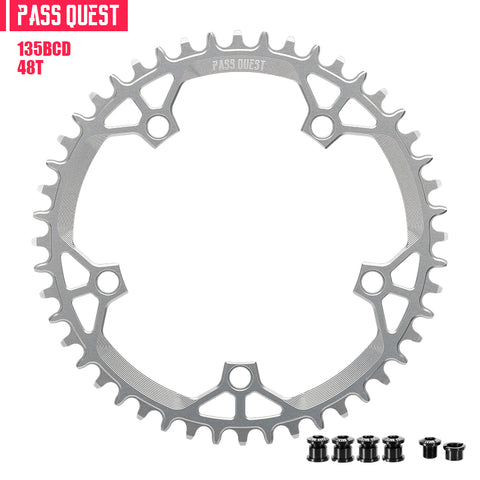

PASS QUEST 135BCD Narrow Wide Chainring CAMPAGNOLO

           PASS QUEST NARROW WIDE CHAINRING

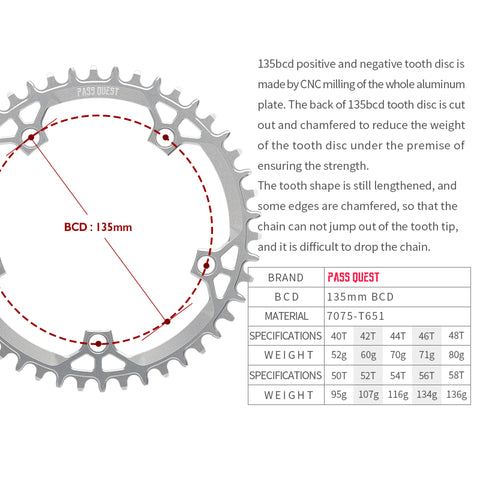

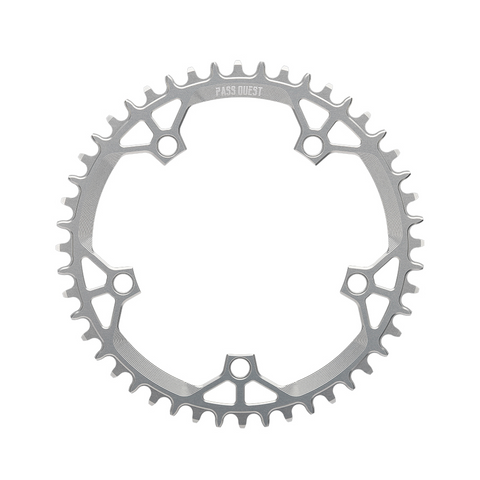

• 135bcd positive and negative tooth disc ismade byCNC milling of the whole aluminumplate.The back of 135bcd tooth disc is cutout and chamfered to reduce the weightof the tooth disc under the premise ofensuring the strength.
  The tooth shape is still lengthened, andsome edges are chamfered, so that thechain can not jump out of the tooth tip,and it is difficult to drop the chain.
• Lengthened tooth design:Our tooth height is 8.5mm.The teeth extend far beyond the chain.Whenyou jumplike crazy.The chain jerked too hard to get out of thet eeth.So as to truly achieve the chain.
• Anodized Surface: 7075 aluminum alloy is difficult to anode.For this reason,we through many product proofing.Upgrade sandblasting anode to matte anode.Upgrade sandblasting anode to matte anode.More beautiful texture.
• Countersunk Structure:Maximize the contant area between the screw and the gear plate. Simpler installation effect. Effectively reduce abnormal noise.
• Narrow wide tooth, it design for 1x speed only, can not use as 2x speed, not support front shifting derailleur.

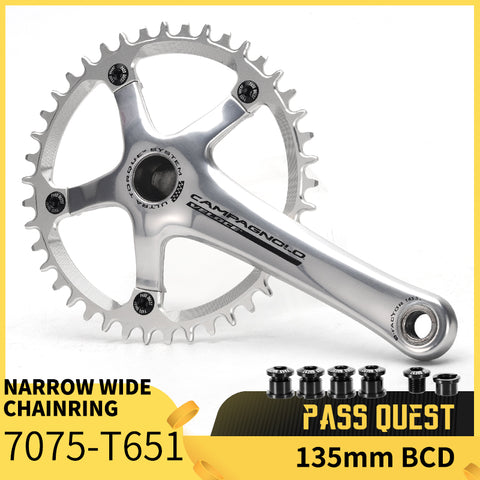

• Chainring Strength: The chainring is CNC-made from high-strength7075-T651 aluminum.Triangular and textured structure ensures chainring rigidity.Use force directly.
• When using a 12-speed chain, please replace the original SHIMANO fast sprocket with a KMC 12-speed fast sprocket.

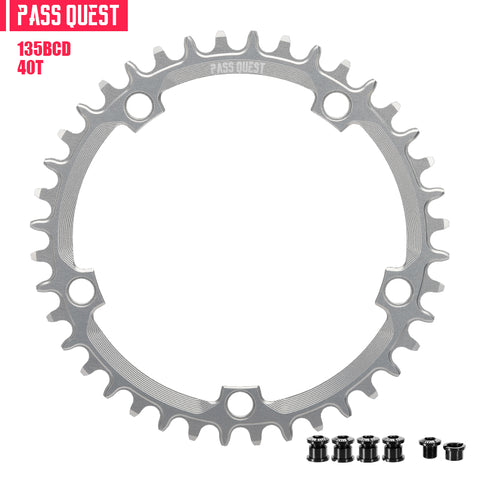

• We provide standard screws free of charge.
  Locking torque: 6-8 N·M

  Excessive torque may damage the screw.
